Industrial controllers , basic theory

Integral Action (Reset)

This function is called Integral Action or reset. The open loop response of the reset mode is shown in

Figure 10, which indicates a step change in the artificial measurement away from the set point at some instant in time. So long as the measurement was at the set point, there is no change in the output due to the reset mode in the controller. However, when any error exists between measurement and set point, the reset will cause the output to begin to change and to continue to change so long as the error exists. This function, then, causes the output to change until the proper output necessary to hold the measurement at the set point at various loads is achieved. This response is added to the proportional response of the controller as shown in figure 11.

The step change in the measurement first causes a proportional response, and then a reset response which is added to the proportional. The more reset action there is in the controller, the more quickly the output changes due to the reset response. The reset adjustment determines how rapidly the output changes as a function of time. Among the various brands of controllers, the amount of reset action is measured in one of two ways; either in minutes per repeat, or the number of repeats per minute. For those controllers measuring reset in minutes per repeat, the reset time is the amount of time necessary for the reset mode to repeat the open loop response caused by proportional mode for a step change in error. Thus, for these controllers, the smaller the reset number, the greater the action of the reset mode. On those controllers which measure reset action in repeats per minute, the adjustment in indicates how many repeats of the proportional action are generated by the reset mode in one minute. Thus, for these controllers the higher the reset number the greater the reset action. Reset time is indicated in figure 11. The proper amount of reset action depends upon how fast the measurement can respond to the additional valve travel it causes.

The controller must not drive the valve faster than the dead time in the process , allowing the measurement to respond, or else the valve will go to its limits before the measurement can be brought back to the set point. The valve will then remain in its extreme position until the measurement crosses the set point whereupon the controller will drive the valve to its opposite extreme where will stay until the measurement crosses the set point in the opposite direction. The result will be a reset cycle in which the valve travels from one extreme to another as the measurement oscillates around the set point. When reset is applied in controllers on batch processes where the measurement is away from the set point for long periods between batches, the reset may drive the output to its maximum resulting in "reset wind?up". When the next batch is started, the output will not come off its maximum until the measurement crosses the setpoint, causing large overshoots. This problem can be prevented by including a "batch switch" in the controller.

« Previous 1 2 3 4 5 Next »
Activities Manual to accompany Programmable Logic Controllers

Activities Manual to accompany Programmable Logic Controllers

$56.02

Pages: 267, Edition: 3, Paperback, Career Education [Read more]
Cascading Logic: A Machine Control Methodology for Programmable Logic Controllers

Cascading Logic: A Machine Control Methodology for Programmable Logic Controllers

$79.00

Pages: 206, Paperback, ISA: The Instrumentation, Systems, and Automation Society [Read more]
Fundamentals of Programmable Logic Controllers, Sensors, and Communications (3rd Edition)

Fundamentals of Programmable Logic Controllers, Sensors, and Communications (3rd Edition)

$95.50

Pages: 672, Edition: 3, Hardcover, Prentice Hall [Read more]
Introduction to Programmable Logic Controllers

Introduction to Programmable Logic Controllers

$147.95

Pages: 480, Edition: 2nd, Paperback, Delmar Cengage Learning [Read more]
Introduction to Programmable Logic Controllers

Introduction to Programmable Logic Controllers

$96.89

Pages: 628, Edition: 3, Paperback, Thomson/Delmar Learning [Read more]
Introduction to Programmable Logic Controllers (Lab Manual)

Introduction to Programmable Logic Controllers (Lab Manual)

$36.95

Pages: 480, Edition: Lab Manual, Paperback, Delmar Thomson Learning [Read more]
Applied Programmable Logic Controllers Laboratory Manual, by Nichols

Applied Programmable Logic Controllers Laboratory Manual, by Nichols

$26.95

This book is in Used condition [Read more]
Design of Analog Fuzzy Logic Controllers in Cmos Technology

Design of Analog Fuzzy Logic Controllers in Cmos Technology

$153.00

This book is in Used condition [Read more]
Design of Analog Fuzzy Logic Controllers in Cmos Technology

Design of Analog Fuzzy Logic Controllers in Cmos Technology

$153.00

This book is in Used condition [Read more]
Design of Analog Fuzzy Logic Controllers in Cmos Technology

Design of Analog Fuzzy Logic Controllers in Cmos Technology

$153.00

This book is in Acceptable condition [Read more]

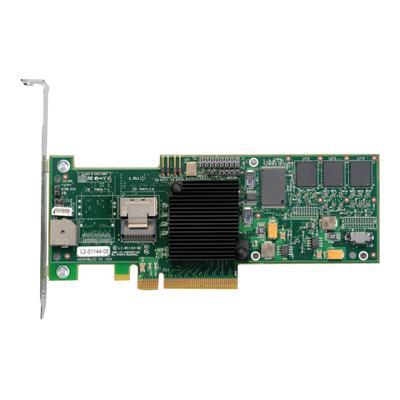

MegaRAID SAS 8704EM2 KIT - Storage controller (RAID) - 4 Channel - SATA-300 / SAS low profile - 300 MBps - RAID 0 1 5 6 10 50 60 - PCI Express x8

MegaRAID SAS 8704EM2 KIT - Storage controller (RAID) - 4 Channel - SATA-300 / SAS low profile - 300 MBps - RAID 0 1 5 6 10 50 60 - PCI Express x8

$365.99

The MegaRAID SAS 8704EM2 a second generation SAS/SATA RAID product from LSI provides high-performance and cost-effective data protection for systems using SATA or SAS hard drives. Architected with an x8 PCI Express host interface 667MHz DDRII ... [Read more]

Brand: LSI Logic

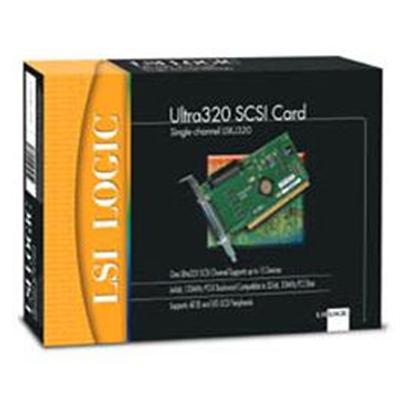

PCI-X SCSI Controller Card - ROHS Compliant

PCI-X SCSI Controller Card - ROHS Compliant

$159.99

Single-channel Ultra320 SCSI HBA is a general-purpose card ideal for attaching JBODs RAID Arrays tape drives tape libraries magneto-optical drives DVD Libraries and other SCSI peripherals. [Read more]

Brand: LSI Logic
SAS3041E-R - Storage controller (RAID) - 4 Channel - SATA-300 / SAS - 300 MBps - RAID 0 1 1E 10E - PCI Express x4

SAS3041E-R - Storage controller (RAID) - 4 Channel - SATA-300 / SAS - 300 MBps - RAID 0 1 1E 10E - PCI Express x4

$159.99

The LSISAS3041E-R is a low-cost 4-port 3Gb/s internal SAS/SATA host bus adapter. This card offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. The SAS3041E-R also offers Integrated RAID 0 1 1E and 10E for ... [Read more]

Brand: LSI Logic
MegaRAID SAS 8704EM2 KIT - Storage controller (RAID) - 4 Channel - SATA-300 / SAS low profile - 300 MBps - RAID 0 1 5 6 10 50 60 - PCI Express x8

MegaRAID SAS 8704EM2 KIT - Storage controller (RAID) - 4 Channel - SATA-300 / SAS low profile - 300 MBps - RAID 0 1 5 6 10 50 60 - PCI Express x8

$365.99

The MegaRAID SAS 8704EM2 a second generation SAS/SATA RAID product from LSI provides high-performance and cost-effective data protection for systems using SATA or SAS hard drives. Architected with an x8 PCI Express host interface 667MHz DDRII ... [Read more]

Brand: LSI Logic

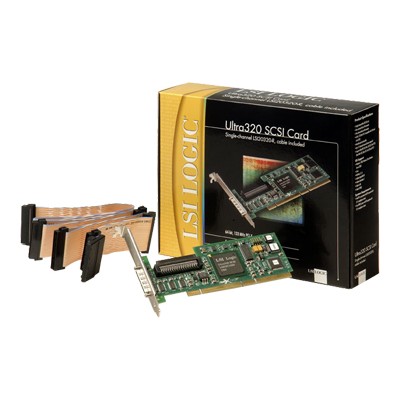

LSI LSI20320-R - storage controller (RAID) - Ultra320 SCSI - PCI-X
